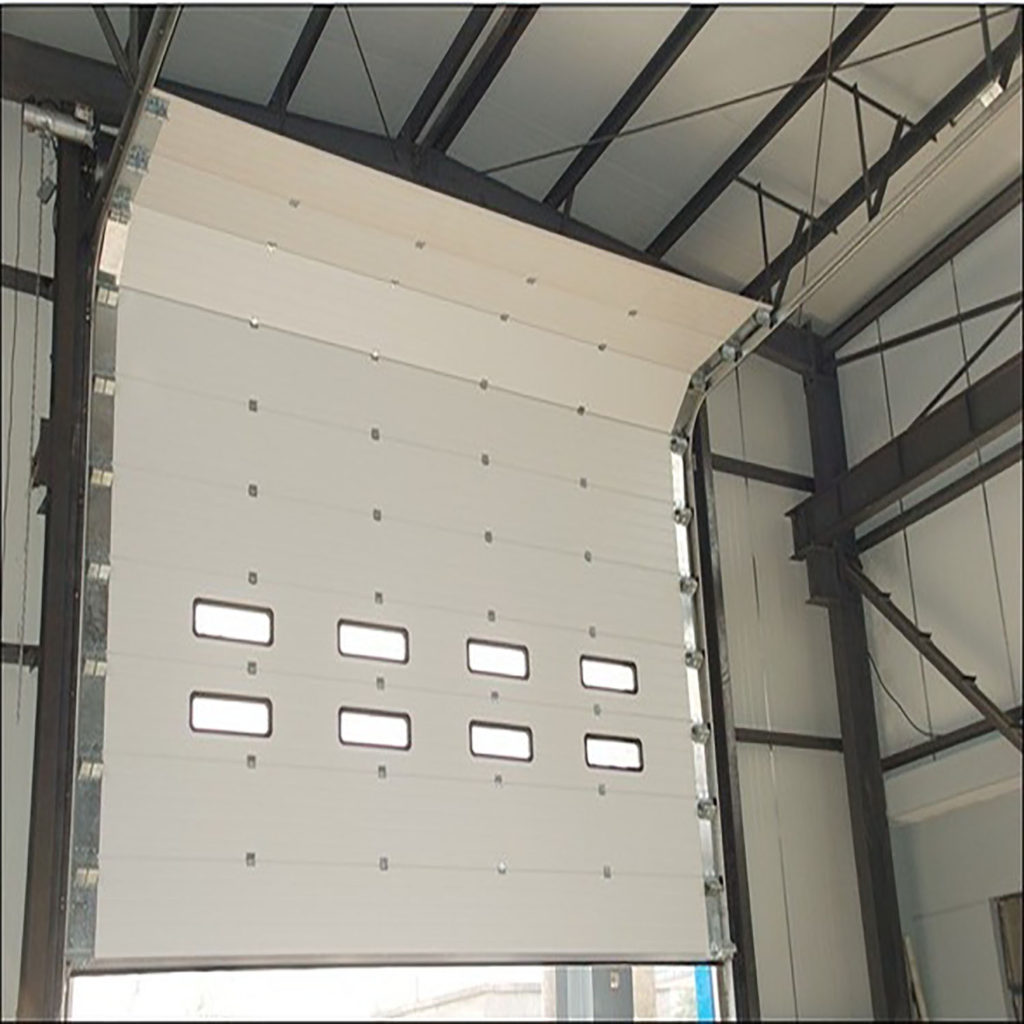

What is an industrial sectional door?
Industrial type sectional door system is a large-size door system applied in areas where high-volume vehicles and material entrances take place at factory, shipyard, hangar and warehouse entrances. Industrial type sectional door systems are manufactured from polyurethane foam filled double wall sheet metal panels.Industrial type sectional door panels are 5,5cm and are manufactured from polyurethane foam filled, 0.5x2mm double wall galvanized steel sheets.
Industrial type sectional doors operate as guillotine by moving towards the ceiling. It is manufactured according to bedding options at the ceiling distance. Industrial type sectional doors are widely used in industrial areas with their high thermal insulation and internal wicket door option.

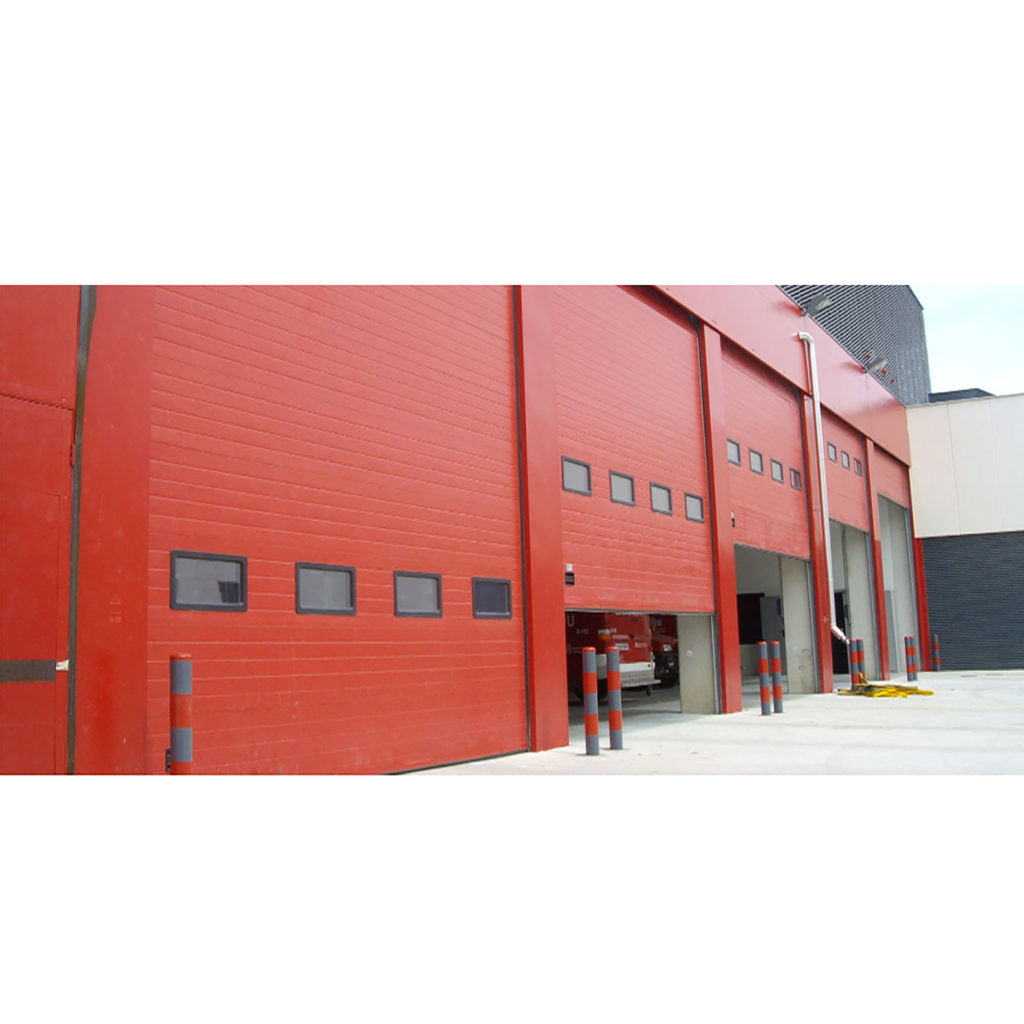

Industrial type sectional doors are preferred in hangar and factory warehouse areas.Industrial and sectional door can be applied on the industrial sectional door.
How Industrial Sectional Door System Works?

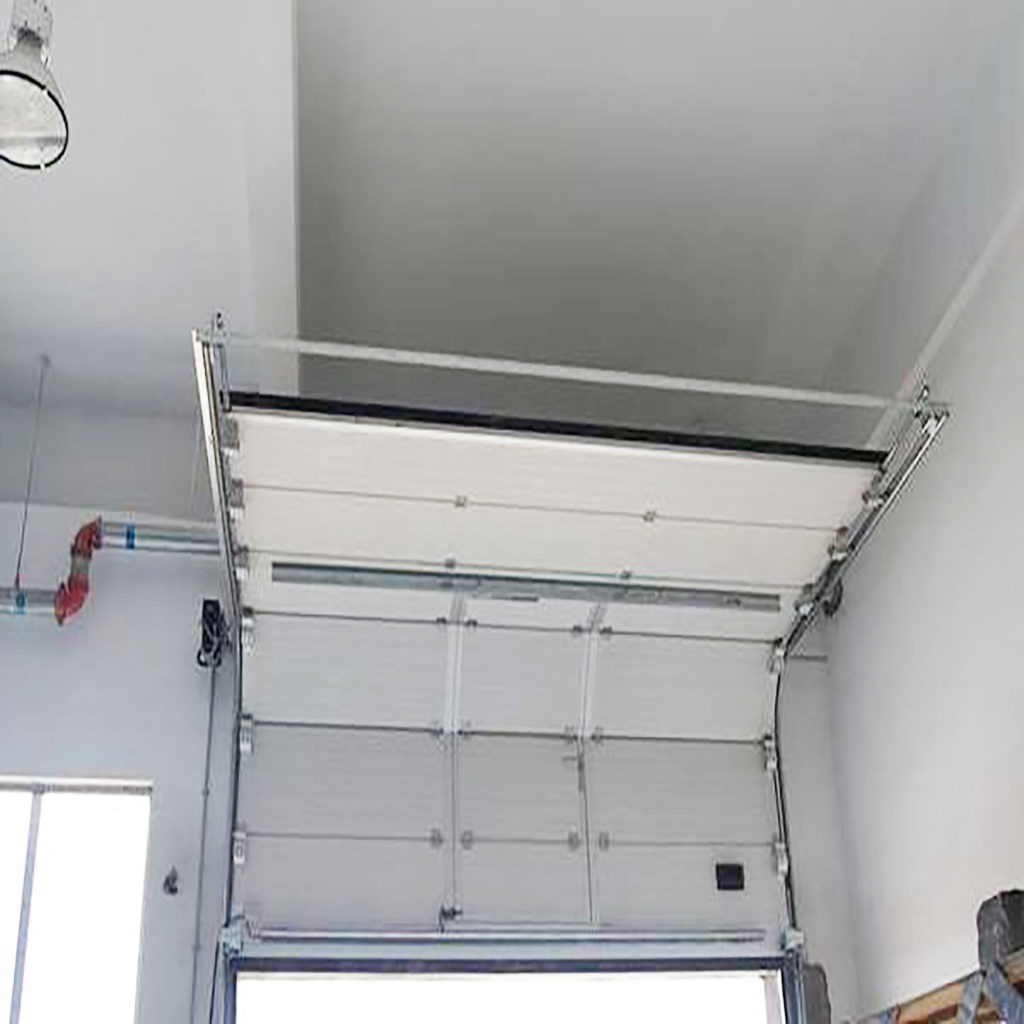

Sectional industrial door systems work by taking the first movement of the polyurethane foam filled panels towards the ceiling and continuing their parallel movement to the ceiling by reaching the ceiling distance after reaching the ceiling distance. For this reason, the sectional door was named.

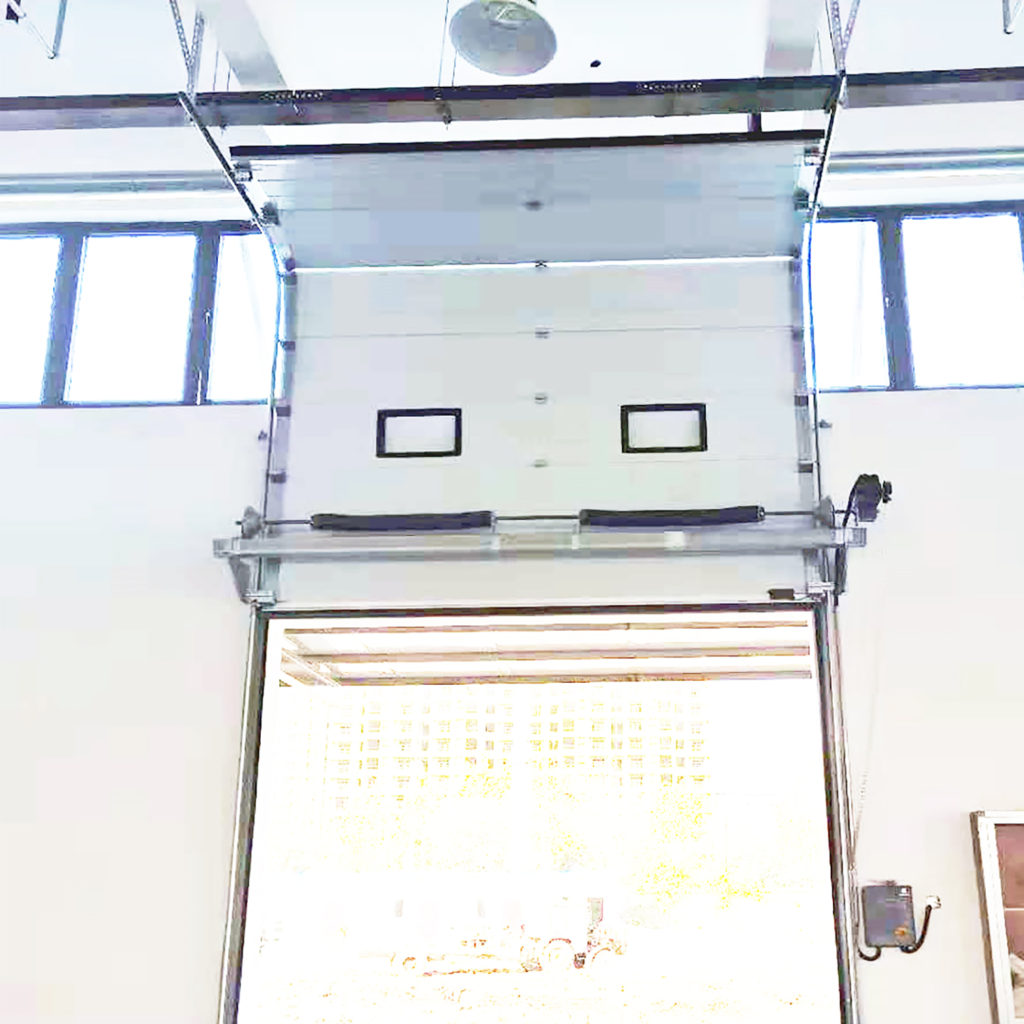

Installed spring systems are used in order to reduce the motor load in the guillotine movement of the heavy-duty industrial type sectional doors and to open them easily in manual use. Hoist system is used for manual opening and closing. 3 phase motors used for Industrial Type Sectional doors are reducer and hoist.
Safety System in Industrial Sectional Door Systems:
The most preferred and recommended safety system in industrial type sectional doors is the pneumatic safety system. In addition, the infrared photocell safety system can be used as an additional measure. In some cases, it is beneficial to use the safety photocell system in addition, as the pneumatic system that triggers by contact may lose its sensitivity in some cases. In industrial type sectional door systems, it is not a correct measure to use only photocell safety. Since the industrial type sectional door will not detect any object passing under or over the photocell, the pneumatic automation system activates upon contact and prevents the door from closing. In industrial type sectional door systems, rope breaking and spring breaking safety system are also important security elements. Motor power may not be sufficient in response to the load of industrial-type sectional door panels with spring breakage. In industrial type sectional door systems, the mechanical safety system activated in rope breaks is vital.
Why sectional doors are preferred in industrial buildings?
Sectional doors are generally preferred in cold stores where there is no dense inlet and outlet. Sectional doors are preferred because they are made of highly insulated palourethane foam sandwich panels. Sectional doors with an opening speed of 4m / sec have a good insulation feature in industrial areas without dense entrance and exit. The internal personnel passage door applied to the industrial type sectional door system allows the personnel to pass through the door without opening the entire door.
Price of Industrial Sectional Door:
Industrial type sectional door systems determine the cost of the panel, preferred engine and automation group according to the size of the sectional door, safety systems and automatic control system. In addition, the need for pass doors and window needs change costs. In some cases, more economical solutions can be produced in industrial type sectional door systems, which are preferred to be used manually, since there will be no motor, electronic safety and automatic control system costs.
